Layout controller

A request describes where a view should go and what happens when it gets there. Callers do not traverse the layout tree. User interactions and agents use the same controller; the resulting panels retain native drag, dock, resize, tabs and close.

{
  "action": "open",
  "view": {
    "kind": "artifact",
    "resource": "X",
    "title": "X"
  },
  "destination": {
    "id": "A"
  },
  "placement": "tab"
}

{
  "action": "open",
  "view": {
    "kind": "artifact",
    "resource": "X",
    "title": "X"
  },
  "destination": {
    "id": "A"
  },
  "placement": "tab"
}

{
  "action": "open",
  "view": {
    "kind": "artifact",
    "resource": "X",
    "title": "X"
  },
  "destination": {
    "id": "B"
  },
  "placement": "tab"
}

{
  "action": "open",
  "view": {
    "kind": "artifact",
    "resource": "X",
    "title": "X"
  },
  "destination": {
    "id": "A"
  },
  "placement": "right"
}

{
  "action": "open",
  "view": {
    "kind": "artifact",
    "resource": "X",
    "title": "X"
  },
  "destination": {
    "id": "A"
  },
  "placement": "below"
}

[
  {
    "action": "move",
    "tabId": "Z",
    "destination": {
      "id": "Y"
    },
    "placement": "below"
  },
  {
    "action": "open",
    "view": {
      "kind": "artifact",
      "resource": "X",
      "title": "X"
    },
    "destination": {
      "name": "preview",
      "select": "original"
    },
    "placement": "tab"
  }
]

{
  "action": "open",
  "view": {
    "kind": "artifact",
    "resource": "X",
    "title": "X"
  },
  "destination": {
    "id": "A"
  },
  "placement": "right"
}

{
  "action": "open",
  "view": {
    "kind": "artifact",
    "resource": "X",
    "title": "X"
  },
  "destination": {
    "role": "preview"
  },
  "placement": "tab",
  "mode": "preview",
  "role": "preview"
}

{
  "action": "open",
  "view": {
    "kind": "artifact",
    "resource": "X",
    "title": "X"
  },
  "destination": {
    "content": {
      "kind": "artifact"
    }
  },
  "placement": "tab"
}

{
  "action": "open",
  "view": {
    "kind": "artifact",
    "resource": "X",
    "title": "X"
  },
  "destination": {
    "empty": true,
    "from": "A",
    "direction": "right",
    "select": "closest"
  },
  "placement": "tab"
}

{
  "action": "open",
  "view": {
    "kind": "artifact",
    "resource": "X",
    "title": "X"
  },
  "destination": {
    "name": "preview"
  },
  "placement": "tab"
}

Destination queries

A destination combines filters with one selection rule. Multiple matches are ambiguous by default, not an invitation to pick an arbitrary panel.

First and last use region creation order, not screen order. Original remains anchored to the initial named region; if it closes, original does not silently become another region. Closest uses edge-to-edge rectangle distance. Ties use center-to-center distance, then creation order and stable ID. Sizes use region area. Hidden tabs share their visible panel's bounds; they are not independent spatial candidates.

An area cannot receive a tab directly. Select a child panel or place a new panel beside the whole area. Names are local to one controller session; they are globally addressable within that session. Naming a split area keeps its identity separate from a named family of panels. Layout/session IDs and family creation history are not a cross-reload persistence contract.

Open and replacement policy

const request = {
  action: "open",
  view: { kind: "artifact", resource: "demo", content: { project: "alpha" } },
  destination: { role: "preview", select: "last" },
  mode: "preview",
  role: "preview",
  reuse: "existing",
  fallback: { destination: { id: sourceTabId }, placement: "right" },
} as const;

Resolution order: validate → check expected revision → reuse an existing resource → select destination → use explicit fallback only on no match → select eligible replacement. Ambiguity never triggers a creation fallback.

• placement: tab (default), right, left, above or below.
• reuse: existing (default) or new-instance. Existing matches kind and resource; prefer an active matching tab, then the first in current layout order.
• mode: tab (default) always adds a tab; preview can replace an unpinned preview in the destination with the requested role. Prefer its active eligible tab, otherwise the last eligible tab in that group.
• name and role: assign destination-family metadata and tab role to new views.
• fallback: destination plus placement, applied atomically with creation.

Pinning protects replacement, not explicit movement or close. Reusing an already open resource preserves its pin and preview state. A disposal guard applies before replacement and close. If the layout changes while the guard awaits, the request returns stale without committing its mutation.

Agent control loop

import { createLayoutController } from "@dreamlake/uikit";

const controller = createLayoutController({
  getRoot: () => layout.current!.getRoot(),
  replaceRoot: (root) => layout.current!.replaceRoot(root),
  describe: (leaf) => leaf.layout?.view,
  canDispose: (leaf) => canCloseView(leaf.id),
  // Supply live root bounds for pixel-based spatial/size queries.
  bounds: () => ({
    x: 0,
    y: 0,
    width: container.clientWidth,
    height: container.clientHeight,
  }),
});
const snapshot = controller.inspect();
const request = {
  action: "open",
  view: { kind: "preview", resource: "example" },
  destination: { select: "last" },
  ifRevision: snapshot.revision,
} as const;
const plan = controller.resolve(request); // no layout mutation
const result = await controller.apply(request);

Inspect returns a flat region list, active and inactive tabs, safe descriptors, bounds, names, roles, pins and a revision. Without bounds, geometry is normalized to a 100-by-100 area and reported as such. Resolve reports chosen IDs, candidates, effect and reason. Apply re-resolves and returns applied, blocked, stale, not-found, ambiguous or invalid. Agents should inspect after uncertain delivery before retrying a mutating request.

Other requests: activate and close take tabId; pin takes tabId and pinned; name takes destination and name; move takes tabId, destination and placement. All accept an optional ifRevision. Stable tab IDs survive native moves. Replacing content creates a new instance, so the old view is disposed rather than silently retargeted under an unrelated document's state.

The host's createView/updateView callbacks materialize validated resource descriptors. validateView lets resolve reject unsupported resources before any layout mutation. describe must return undefined only for empty placeholders. Keep bodies, credentials, tokens and editor state out of descriptor metadata.

Browser registry and CLI integration

createLayoutRegistry() exposes version 1, register, list and dispatch. Dispatch accepts inspect, resolve and apply. Register each mounted controller with an explicit ID; call its cleanup function on unmount. A host may expose this registry as window.dreamlakeLayouts for trusted browser automation. It installs no remote transport by itself.

DreamLake CLI layout control attaches to an explicitly selected local browser page and layout. DreamLake supplies note, artifact, resource-list and opt-in web-preview descriptors; ordinary web links retain browser navigation.

Source and verification

The examples use layout-examples.ts; the controller test suite executes every branch. Additional tests cover whole-group placement, named lineage after native docking, pinned replacement, save guards, concurrent changes, and invalid requests. The generated UIKit skill includes this reference. This page defines the generic API; DreamLake documents its application policies separately.

Browser evidence

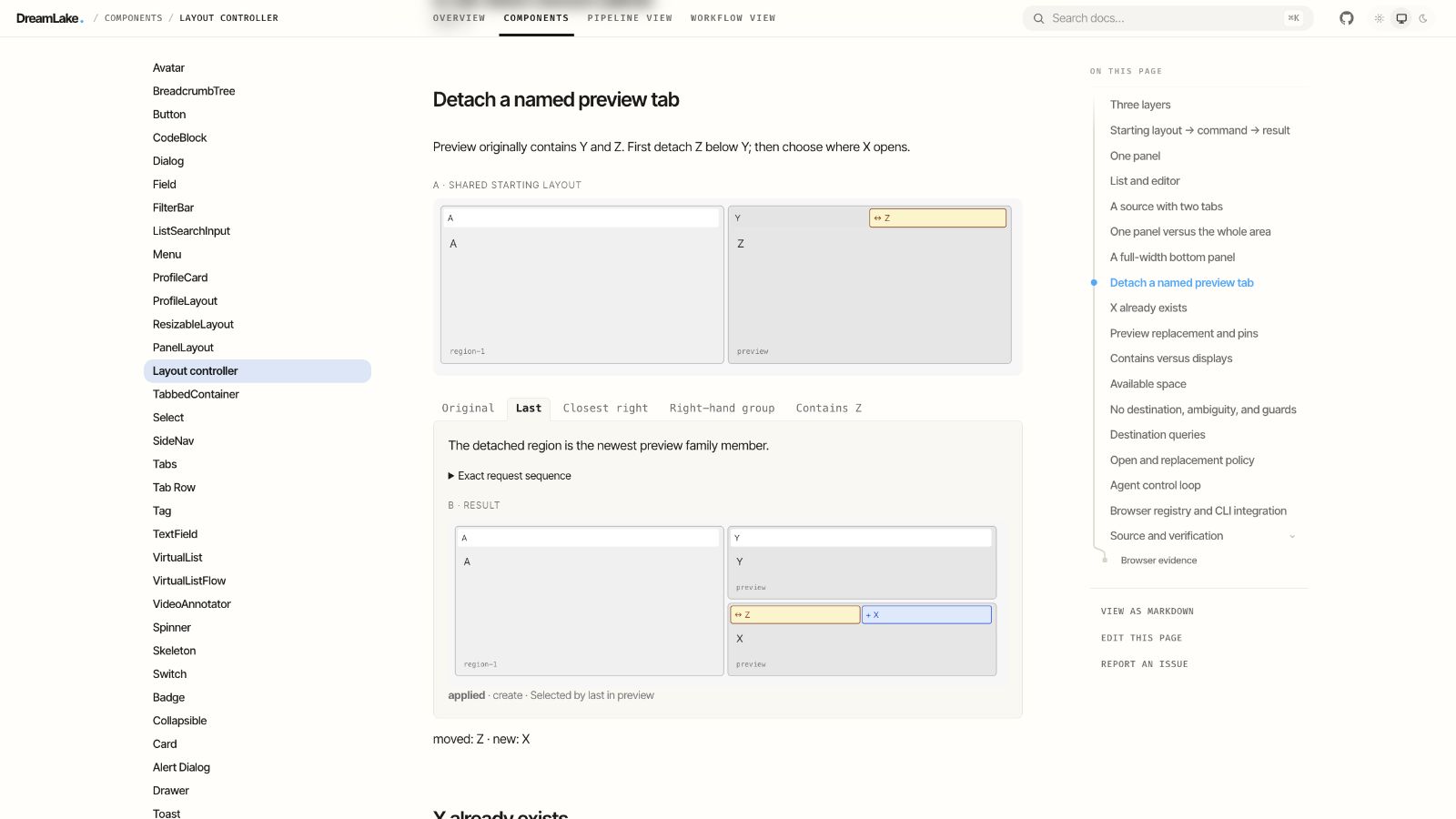

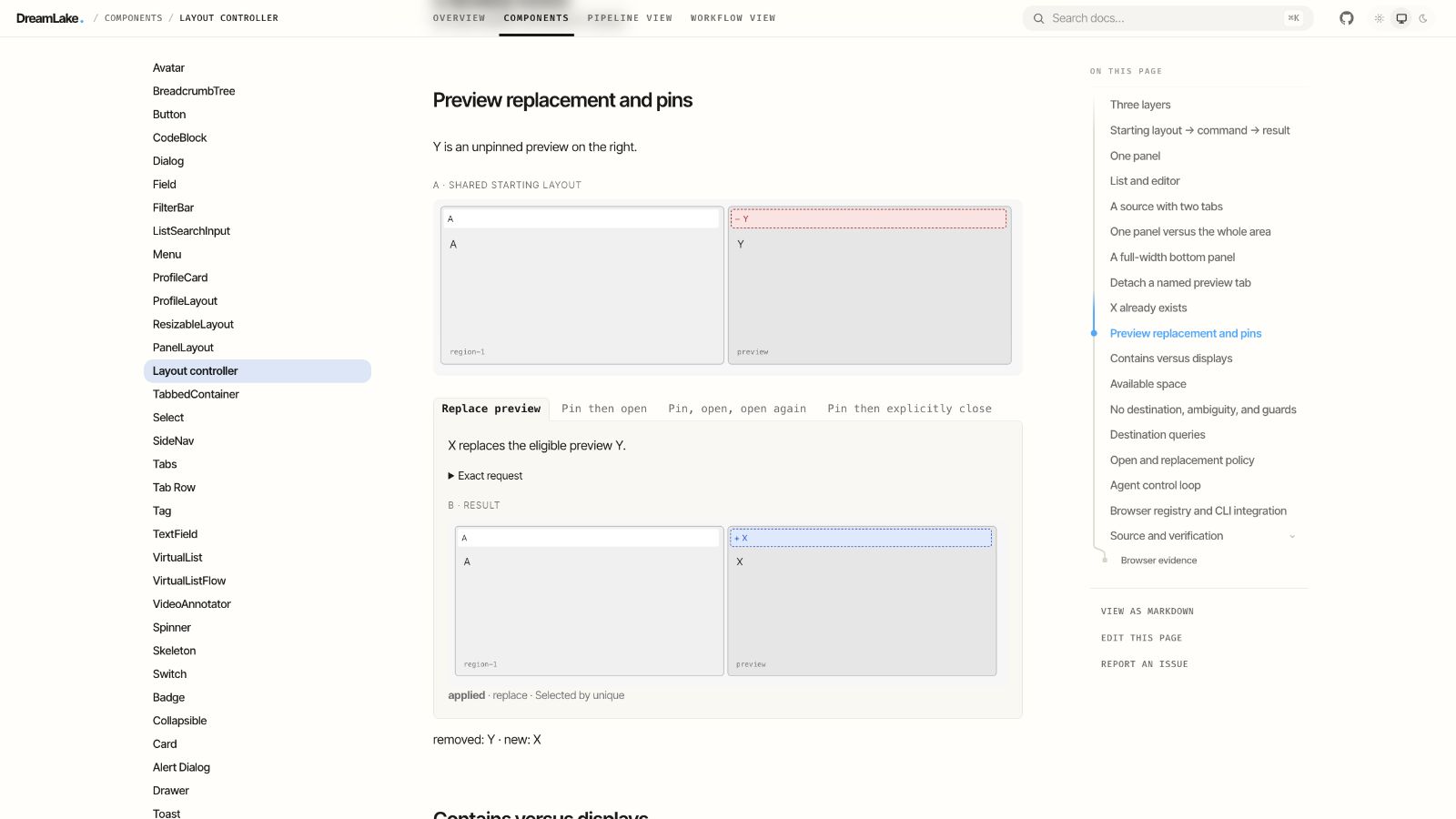

Local browser verification of the documentation's live branches (September 26, 2026):
